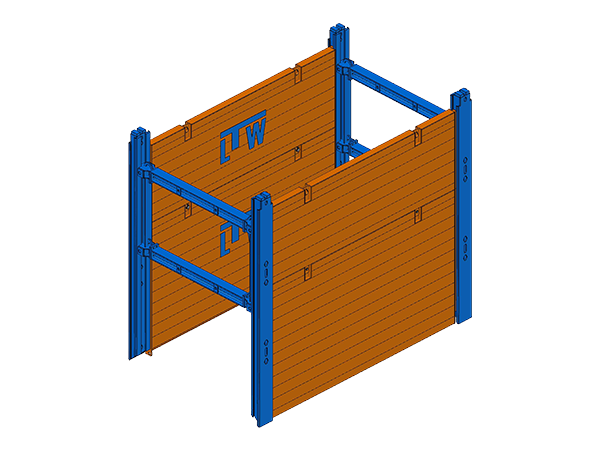

One of the major advantages of the Parallel Single Slide Rail Shoring with Standard Rolling Frame is the lightweight construction of the frame and the corresponding two frame extensions – it is the most frequently used combination.
The compressive force from the Slide Rails is spread evenly via the rolls of the frame straight into the top and lower frame extensions. There is no additional bending moment when the force is applied and for this reason the frame extension can be a lightweight construction.
The system can be used for a trench width from 0.80 m to 6.80 m. In order to achieve the required trench width, several frame extensions can be flanged and screwed behind each other.
The Standard Rolling frame is a vertically moveable frame, which flexibly adjusts in height for a pipe clearance of up to 1.92 m.
The Single Slide Rail has a one track guidance for the insertion of the shoring plates. The plates are equipped with special T-shaped side adapters to slide into the rail, ensuring a positive connection. Thus, only one base and one top extension plate can be inserted for a maximum trench depth of up to ~ 3.80 m.
The slide rail plates and bolts used are identical in all our Slide Rail Systems enabling a high level of flexibility and compatibility.
The standard length of the Slide Rail plates is 2.00 to 5.00 m; however, the 3.50 m long plate is the most common for this system.
