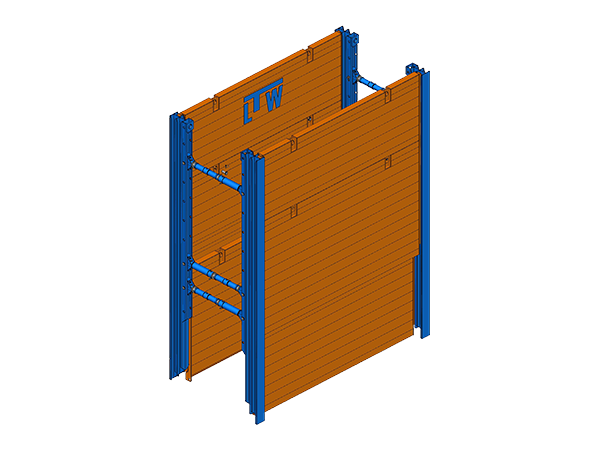

Double Slide Rail DG-FP

The Double Slide Rail System type DG-FP is a modular system with a two track guidance for the insertion of two base plates and one top extension plate for a trench depth of up to ~5.50 m.

This system can also be used in poor or unstable soil conditions, as the special T-shaped side adapters ensure a positive connection to the slide rails. The Double Slide Rail System Type DG-FP is installed by alternately pushing and lowering (Dig and Push method).

The Double Slide Rail Type DG-FP is braced by our rugged standard struts and the articulated spring mushroom fittings. The system can be used for a trench width from 1.61 m to 3.91 m and ensures a pipe clearance of up to ~2.00 m.

The slide rail plates used are identical in all our Slide Rail Systems enabling a high level of flexibility and compatibility. The standard length of the Slide Rail plates is 2.00 to 5.00 m; however, the 4.00 m long plate is the most common for this system.

In combination with our Corner Slide Rails, the system can be used for all four side closed pits.

  • max. installation depth:
    ~5,50 m
  • max. trench width:
    1,60 - 3,91 m
  • max. pipe culvert height:
    ~2,00 m
